Description
The FNIRSI WD-02 wall detector is an improved version of the previous version WD-01 with a better high-resolution TFT display and a new user interface with additional languages. The 3-stage sensitivity adjustment increases measurement accuracy. It can be used to detect steel bars, metal beams, metal pipes, wood and wires in walls, ceilings and floors. There are 3 detection modes available: metal, wood and AC detection.
Features
- The small size of this tool is very convenient for daily use, you can also easily hold it while using.

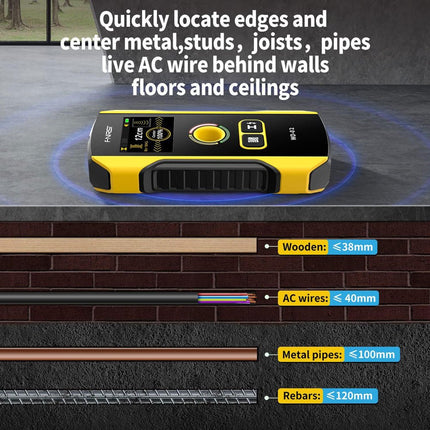

- With this wall detector scanner you can quickly locate edges and center metal, studs, beams, pipes and live AC cables behind walls, floors and ceilings. The measuring range is ≤38 mm for wood, ≤40 mm for AC cables, ≤100 mm for metal pipes and ≤120 mm for reinforcing bars.
- The HPC detection module provides better anti-interference ability and faster computing speed.
- The screen displays the target depth, reaches the detection center and material. The indicator light turns yellow or red depending on the target distance and the green light means 'No target'. It also beeps when a target is detected. When the center is reached, warnings are continuously issued.
- This tool can be widely used for home decoration, wall decoration, home appliance installation, road maintenance, etc.
- The center positioning hole design allows you to directly mark the drilling position after detection and achieve precise drilling.
Specifications
Max detection depth | Metals | 120 mm |
Non-ferrous metals (copper) | 100 mm |
AC wire | 50 mm |
Single-strand copper wire | 40 mm |
Wooden | Precision mode 20 mm Depth mode: 38 mm |
Automatic ring down | After 5 minutes of inactivity |
Power supply | 300 mAh rechargeable lithium battery, USB-C charging |
Dimensions | 138 x 68 x 22 mm |
Weight | 122 g |
Included
- FNIRSI WD-02 Wall Detector Scanner
- USB cable
- Storage bag
- Manual
