EasyVR 3 Plus Shield for Arduino

Description

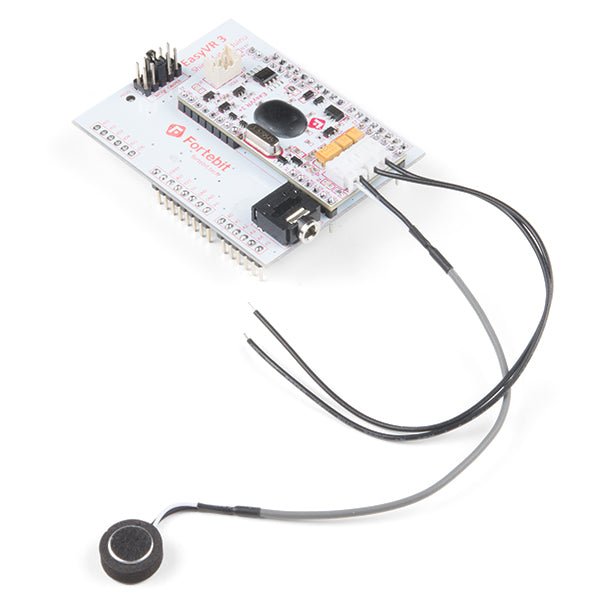

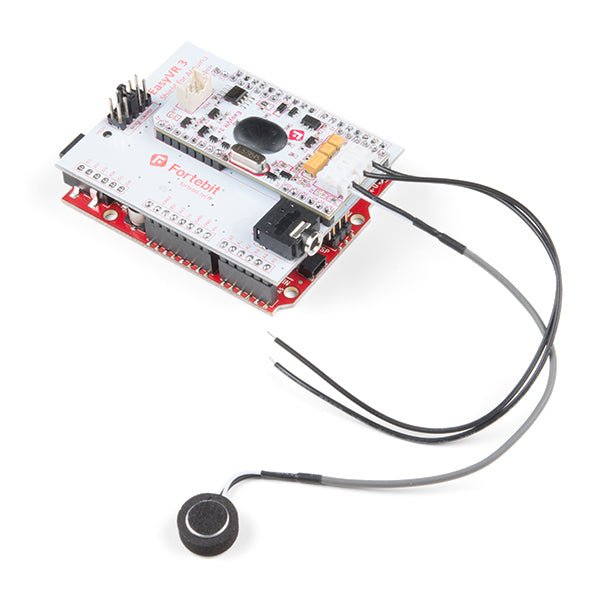

Do you make time to talk to your Arduino? Maybe you should! The EasyVR 3 Plus Shield is a voice recognition shield for Arduino boards integrating an EasyVR module. This kit includes the EasyVR 3 Plus Module, the Arduino Shield Adapter, microphone, and headers. With all of these parts, everything has been provided to you to get up and running in a short amount of time with minimal soldering!

EasyVR 3 Plus is a multi-purpose speech recognition module designed to add versatile, robust and cost effective speech recognition capabilities to almost any application. The EasyVR 3 Plus module can be used with any host with a UART interface powered at 3.3V – 5V, such as PIC and Arduino boards. Some application examples include home automation, such as voice-controlled light switches, locks, curtains or kitchen appliances, or adding “hearing” to the most popular robots on the market.

Note: Please be aware that the EasyVR 3 Plus Shield for Arduino does not come pre-assembled and will require some soldering and assembly before operation.

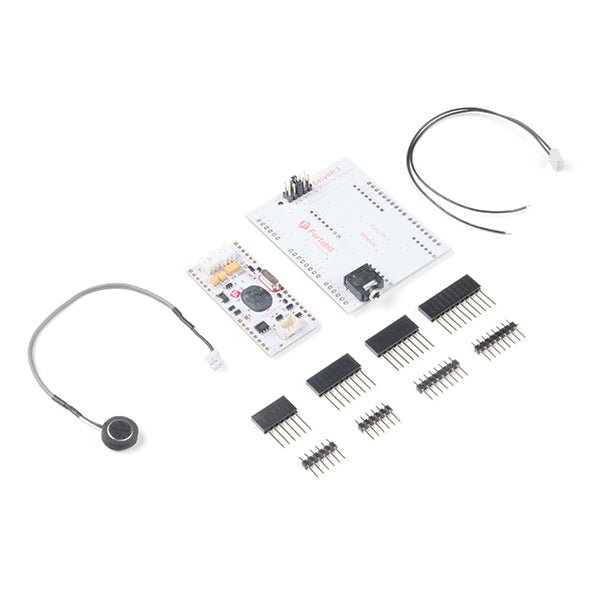

Includes

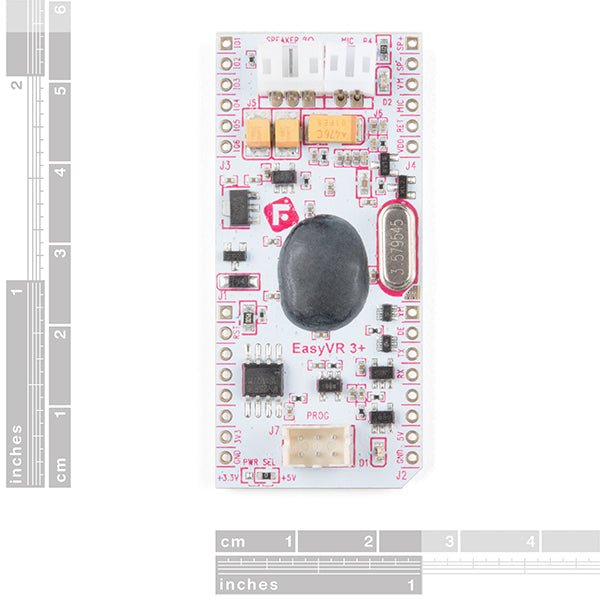

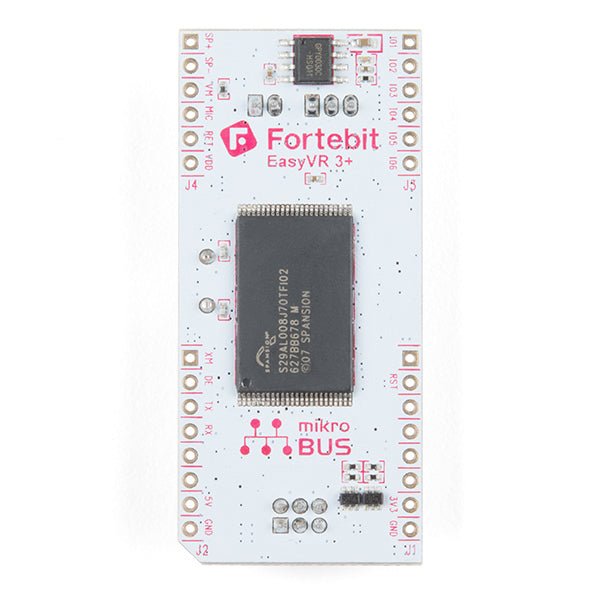

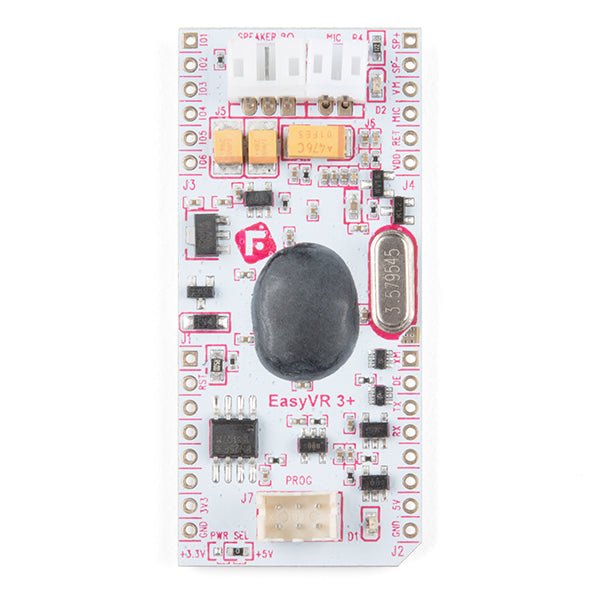

  • EasyVR 3 Plus Module

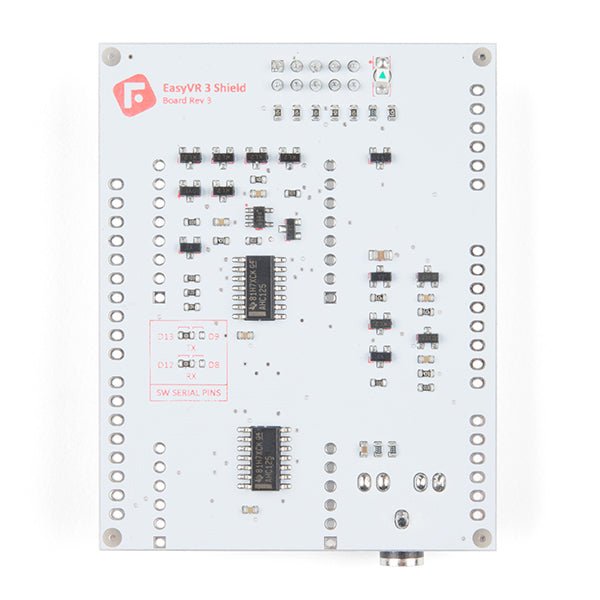

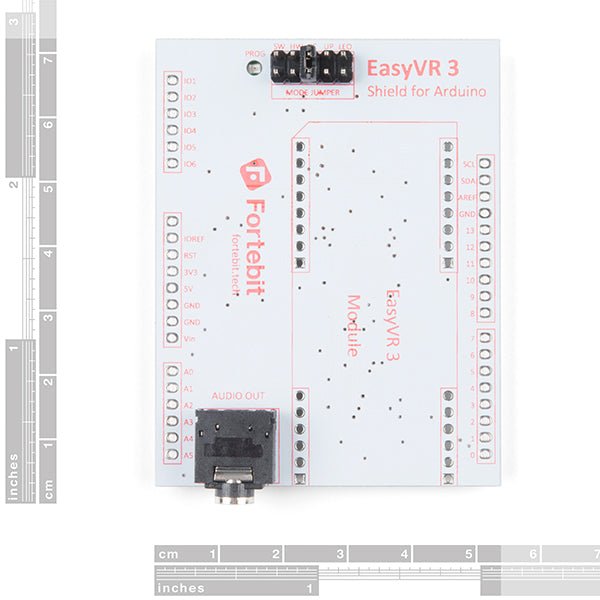

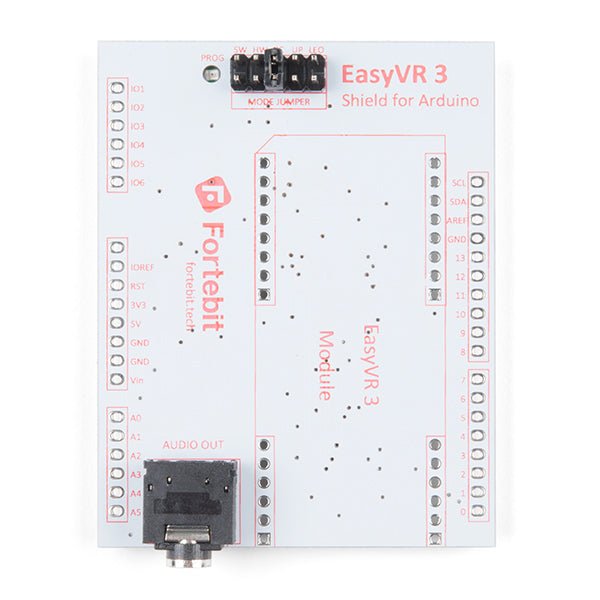

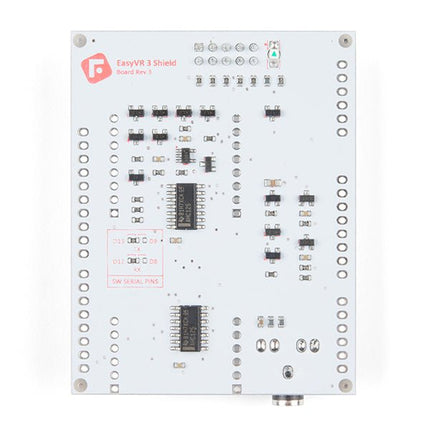

  • EasyVR Shield 3
  • Wired Microphone
  • Speaker cable (Speaker not included)
  • Header Set

Features

  • Up to 256 user-defined Speaker Dependent (SD) or Speaker Verification (SV) commands, that can be trained in ANY language, divided into maximum 16 groups (up to 32 SD or 5 SV commands each).
  • A selection of 26 built-in Speaker Independent (SI) commands for ready-to-run basic controls, in the following languages:
    • US English
    • French
    • German
    • Italian
    • Japanese
    • Spanish
  • Other SI commands freely downloadable from the Fortebit website (downloads section).
  • SonicNet™ technology for wireless communications between modules or any other sound source (Audio CD, DVD, MP3 Player).
  • Up to around 21 minutes of pre-recorded sounds or speech.
  • Up to about 137 seconds of live message recording and playback.
  • Real-time Lip-sync capability.
  • DTMF tone generation.
  • Differential audio output that directly supports 8Ω speakers.
  • Easy-to-use Graphical User Interface to program Voice Commands and audio.
  • Standard UART interface (powered at 3.3V - 5V).
  • Simple and robust documented serial protocol to access and program through the host board.
  • Six General purpose I/O lines that can be controlled via UART commands.
  • With the optional Quick T2SI Lite license, up to 28 custom Speaker Independent (SI) command vocabularies, with up to 12 commands each, for a total of 336 possible commands in the following languages:
    • US English
    • British English
    • French
    • German
    • Italian
    • Japanese
    • Korean
    • Mandarin
    • Spanish
  • Compatible with Arduino boards that have the 1.0 Shield interface (UNO R3) including, but not limited to:
    • Arduino Zero
    • Arduino Uno
    • Arduino Mega
    • Arduino Leonardo
    • Arduino Due
  • Supports 5V and 3.3V main boards through the IOREF pin (defaults to 5V if this pin is absent)
  • Supports direct connection to the PC on main boards with a separate USB/Serial chip and a special software-driven “bridge mode” on boards with only native USB interface, for easy access and configuration with the EasyVR Commander
  • Enables different modes of serial connection and also flash updates to the embedded EasyVR module (through the Mode Jumper)
  • Supports remapping of serial pins used by the Shield (in SW mode)
  • Provides a 3.5mm audio output jack suitable for headphones or as a line out
Product form

Do you make time to talk to your Arduino? Maybe you should! The EasyVR 3 Plus Shield is a voice... Read more

€ 47,95 incl. VAT
Members € 43,16

      Details

      SKU: 19337
      EAN: 8052461780016
