Description

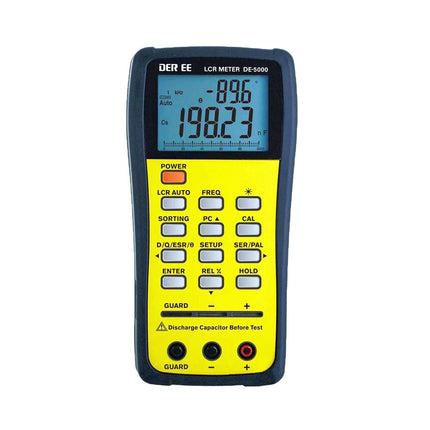

The DE-5000 is a smart, high-accurate, flexible and easy-to-use portable LCR meter. It features automatic LCR check, 4-wire Kelvin measurement, backlit display with 19999/1999 counts, multiple measurement modes and selectable test frequencies (100 Hz, 120 Hz, 1 kHz, 10 kHz or 100 kHz). The DE-5000 LCR meter is a practical helper for engineers or technicians.
Features
- Auto L.C.R. check
- Ls/Lp/Cs/Cp/Rs/Rp/DCR with D/Q/θ/ESR measurement
- 4-wire Kelvin measurement
- 20,000 / 2,000 counts display
- Backlight
- Relative mode
- Series / Parallel modes
- Components sorting function
- Low battery indication
- Auto power off
Specifications
| Test frequency | 100 Hz / 120 Hz / 1 kHz / 10 kHz / 100 kHz |
| Resistance range | 20.000 Ω – 200.0 MΩ |
| DCR range | 200.00 Ω – 200.0 MΩ |
| Capacitance range | 200.00 pF – 20.00 mF |
| Inductance range | 20.000 µH – 2.000 KH |
| Display (backlit LCD) | 19999 / 1999 counts |
| Selectable tolerance | ±0.25%, ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20% |
| Power supply | 9 V battery |
| Dimensions | 188 x 95 x 52 mm |
| Weight | 350 g (excluding battery) |
Included
- DE-5000 LCR meter
- Alligator test lead case (TL-21)
- AC/DC adaptor
- Guard line (TL-23)
- TL-22 SMD tweezers
- 9 V battery
- Carrying case
- Manual
