Description

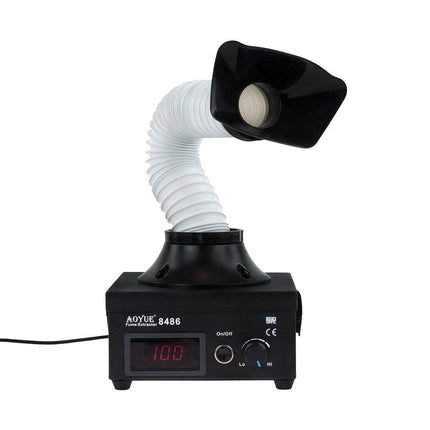

The Aoyue 8486 fume extractor utilizes 3 filters including HEPA and activated carbon beads for the max. extraction efficiency. It removes 97% of particles greater than 0.3 um. Easily position the fume extractor soldering hose exactly where you need it over the work. Dial in the perfect amount of fume extraction power using the large front panel readout and control dial. Aoyue 8486 redirects soldering smoke caused by burning flux and other fumes away from your face so you can breathe.
Features
- Desktop fume extraction system with HEPA filter (high efficiency particulate air filter) for removing the dust particles and enhanced activated carbon filtration system.
- With actual carbon filter beads.
- Powerful suction, quiet operation.
- Electronic control panel with variable airflow adjustment.
- Sub-filters extend the life of main filters.
- Free standing arms.
- Arms can be bent as desired and maintain their shape after adjustment.
- Unit has mount holes so it can be attached to walls to free up desk space.
Specifications
| Voltage input | 220 V |
| DC voltage | 12 V |
| Suction fan | 3.59 m/s |
| Suction power | 18-100% |
| HEPA filter | H11 class |
| Carbon filter | Activated carbon 800 IV (cylinder type) |
| Dimensions | 184 x 184 x 152 mm (W x H x D) |
| Weight | 1.8 kg |
Included
- Main unit
- Flexible extractor tube
- Filter hood
- HEPA filter
- Activated carbon filter
- Sub air filter
- DC power brick
- Instruction manual
