Description

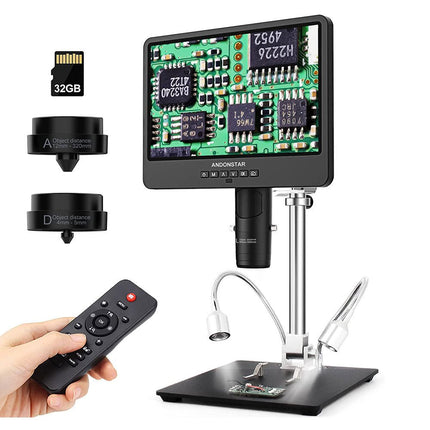

This versatile microscope covers a wide magnification range (60-240x, 18-720x, 1560-2040x) with 3 lenses. With this digital microscope, you can examine plants, insects, gems and coins, or do electronic work such as repairing or making circuit boards.
Specifications
| AD246S-M | AD249S-M |

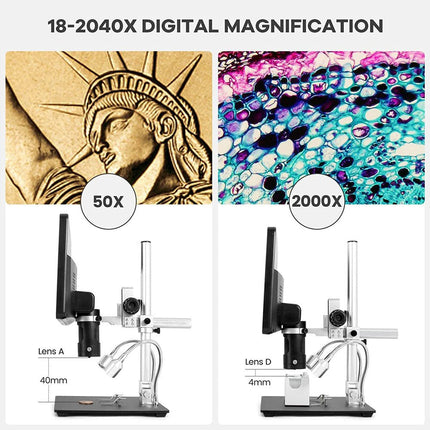

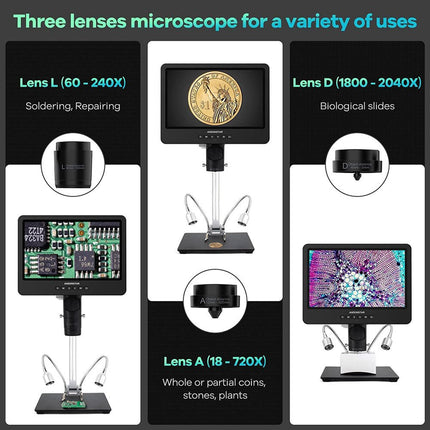

Magnification | Lens A | 18-720 | 18-720 |
Focus range | 12-320 mm | 12-320 mm |
Lens D | 1800-2040 | 1800-2040 |
Focus range | 4-5 mm | 4-5 mm |
Lens L | 60-240 | 60-240 |
Focus range | 90-300 mm | 90-300 mm |

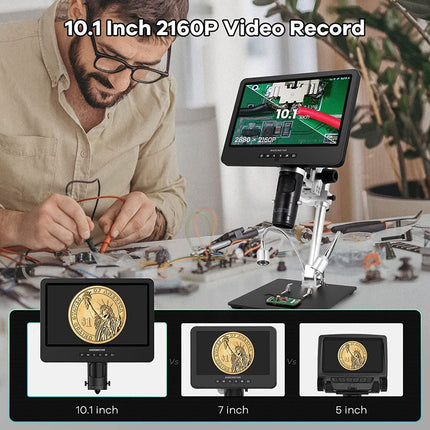

Screen size | 7 inch (17.8 cm) | 10 inch (25.7 cm) |
Video resolution (max.) | UHD 2880x2160 (24fps) | UHD 2880x2160 (24fps) |
Video format | MP4 | MP4 |
Photo format | JPG | JPG |
Photo resolution | 5600x2400 (with interpolation) | 5600x2400 (with interpolation) |
Frame rate | Max. 120fps | Max. 120fps |
HDMI output | Yes (support dual-screen display) | Yes (only HDMI monitor displays) |
PC output | Yes | Yes |

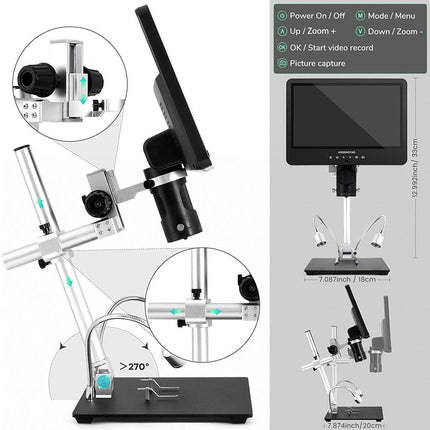

Stand size | 20 x 18 x 30 cm | 20 x 18 x 30 cm |

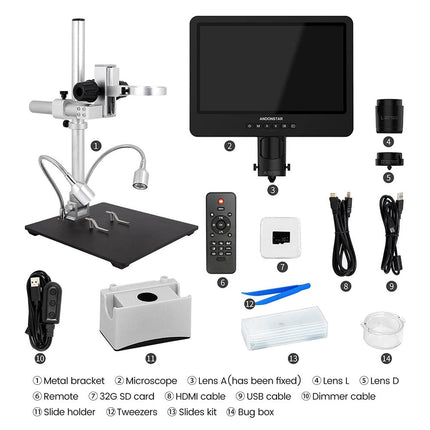

Included
- 1x Andonstar AD249S-M Digital Microscope
- 3x Lenses (A, D & L)
- 1x Slide holder
- 1x 32 GB microSD card
- 1x USB cable
- 1x Switch cable
- 1x HDMI cable
- 1x Remote control
- 5x Prepared Slides
- 1x Observation box
- 1x Tweezers
- 1x User manual
