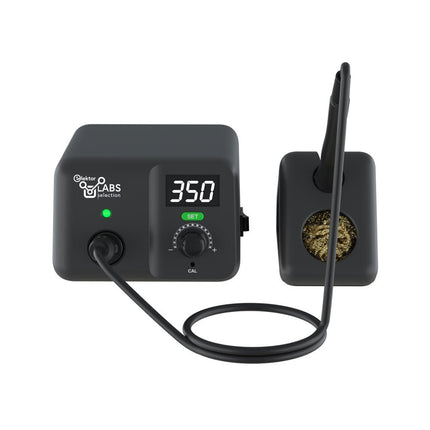

AE970D Soldering Station (80 W)

Description

Soldering station for precision soldering with actively heated soldering tip

The AE970D soldering iron station is a 80 W high power tool to heat up to solder fastly. Its wide temperature range of 150-550°C (302-1022°F) could meet all your soldering needs. Thanks to its high performance plug-and-play integrated active tip, AE970D can reach melting point within 9 seconds. Patented close-loop automatic constant temperature control technology can ensure its soldering with high stability, excellent performance and precise accuracy.

Features

  • 80 W high power to enable fast heating up
  • Wider temperature range of 150-550°C (302-1022°F) to meet all your soldering needs
  • High performance plug-and-play integrated active tip, can reach melting point within 9 seconds
  • Patented close-loop automatic constant temperature control technology to ensure high stability, excellent performance and precise accuracy

Specifications

Power 80 W
Input voltage 110 VAC / 230 VAC
Output voltage 25 VAC
Temperature range 150-550°C (302-1022°F)
Heating element T80 series integrated active heater
Temperature stability ±1°C/±1.8°F (when temperature >200°C/400°F)
Tip to ground resistance <2 Ω
Tip to ground voltage <2 mV
Power cord length 1 m
Handle cable length 1.2 m
Dimensions 148 x 120 x 85 mm
Weight (main unit) 1.33 kg

Included

  • Main unit
  • Soldering iron incl. soldering tip T80-D12
  • Iron stand
  • Brass wool
  • Manual
Product form

Soldering station for precision soldering with actively heated soldering tip The AE970D soldering iron station is a 80 W high... Read more

€ 95,00 (incl. VAT)
Order Now (at Eleshop)
By clicking on "Order Now", you will be redirected to our partner store, Eleshop. Elektor may earn a commission if you buy through this link. There are no additional costs for you. The terms & conditions of Eleshop apply to your purchase.

    Details

    SKU: 20731
    EAN: 020731

    Description

    Soldering station for precision soldering with actively heated soldering tip

    The AE970D soldering iron station is a 80 W high power tool to heat up to solder fastly. Its wide temperature range of 150-550°C (302-1022°F) could meet all your soldering needs. Thanks to its high performance plug-and-play integrated active tip, AE970D can reach melting point within 9 seconds. Patented close-loop automatic constant temperature control technology can ensure its soldering with high stability, excellent performance and precise accuracy.

    Features

    • 80 W high power to enable fast heating up
    • Wider temperature range of 150-550°C (302-1022°F) to meet all your soldering needs
    • High performance plug-and-play integrated active tip, can reach melting point within 9 seconds
    • Patented close-loop automatic constant temperature control technology to ensure high stability, excellent performance and precise accuracy

    Specifications

    Power 80 W
    Input voltage 110 VAC / 230 VAC
    Output voltage 25 VAC
    Temperature range 150-550°C (302-1022°F)
    Heating element T80 series integrated active heater
    Temperature stability ±1°C/±1.8°F (when temperature >200°C/400°F)
    Tip to ground resistance <2 Ω
    Tip to ground voltage <2 mV
    Power cord length 1 m
    Handle cable length 1.2 m
    Dimensions 148 x 120 x 85 mm
    Weight (main unit) 1.33 kg

    Included

    • Main unit
    • Soldering iron incl. soldering tip T80-D12
    • Iron stand
    • Brass wool
    • Manual
